When you look at a wakesurf board, it’s easy to get caught up in the graphics, the foam traction pads, or the brand logo. But underneath the aesthetics, a wakesurf board is a highly tuned hydrodynamic machine.

If you've ever felt like you're fighting the wave instead of riding it, your board's shape is likely the culprit. Every curve, edge, and contour is designed with a specific purpose. Small changes in the shape of the tail or the angle of a fin completely transform how water flows under your feet. That flow determines your speed, your stability, your ability to catch air, and how easily you can spin.

At Smith Board Co., we obsess over these details because we know that understanding the physics of your board is the secret to unlocking your best riding.

This guide breaks down the anatomy of a wakesurf board. Whether you’re customizing a new ride or just trying to understand why your current board feels the way it does, here is exactly how board design affects your performance on the water.

The Outline and Curvature (The Footprint)

The outline is the shape of the board when you look at it from straight above. It dictates the board's turning radius, stability, and speed.

Straighter Outlines: Boards with straighter, more parallel rails streamline water flow, reducing drag. This translates to quicker acceleration and higher top-end speeds. A straighter board wants to go fast and make smooth, sweeping turns.

Curvier Outlines: Boards with a pronounced curve (a wider midpoint tapering to the ends) have a shorter turning radius. They push more water, which adds a bit of drag, but they are incredibly agile, making them perfect for aggressive, tight slashes.

Snub Noses & Tails: You’ve probably seen boards that look like the tips have been chopped off. This isn't just for looks. A snub nose brings the board's volume closer to the center, reducing "swing weight" (like pulling your arms in while spinning in an office chair). This makes the board turn faster with less effort and prevents the nose from catching the wave. A snub tail concentrates volume at the back of the board, increasing lift, drive, and speed.

Deep Dive: Want to learn more about the physics of curvature and swing weight? Read our guides on Curve Appeal: How Your Board’s Outline Shapes Performance and The Impact of Snub Noses and Tails on Performance.

Rocker and Foil (The Profile)

If the outline is the footprint, the rocker is the profile. It is the upward curve of the board from nose to tail, and it’s one of the most influential attributes of any board.

Flat / Low Rocker: Imagine skipping a flat stone; it glides effortlessly. Less rocker means more of the board is in contact with the water. This increases your planing surface, displacing water to create buoyancy and serious straight-line speed. The trade-off? It’s easier to nosedive (pearl) if you lean too far forward.

High / Aggressive Rocker: Imagine a banana. It pushes water rather than gliding over it, which creates drag (slowing you down). However, that curve fits perfectly into the pocket of the wave, allowing for incredibly tight, aggressive turns without burying the nose.

The Foil (Volume Distribution): While rocker is the curve of the board, foil refers to how the board's thickness is distributed from nose to tail. A thinner nose reduces weight for agility, while a thicker tail provides buoyancy and push. A balanced foil creates a versatile, all-around ride.

Deep Dive: Explore the balance between lift and drag in our articles: Understanding The Rocker and Wakesurf Board Rocker and Foil Design.

Rail Design (The Edges)

The rail is the edge of your board. It dictates how the board transitions from edge to edge and how it "bites" into the wave face.

Soft (Rounded) Rails: These edges are rounded and smooth. Water wraps around the curve, creating a suction effect that holds the board to the wave. They are highly forgiving and won't easily "catch an edge," making them perfect for beginners or those who want a relaxed, surfy feel.

Hard (Sharp) Rails: These edges feature a sharp corner. When water hits this edge, it shears off cleanly, reducing drag and increasing speed. When you lean into a turn, a hard rail slices into the water like a knife, offering aggressive grip and drive. The trade-off? They are less forgiving, making it easier to catch an edge and wipe out if your balance is off.

Blended Rails: Many modern boards use a soft rail in the middle for stability and a sharp rail in the tail for speed and release.

Deep Dive: Learn how rail volume and taper affect your ride in our guide to Wakesurf Board Rail Design.

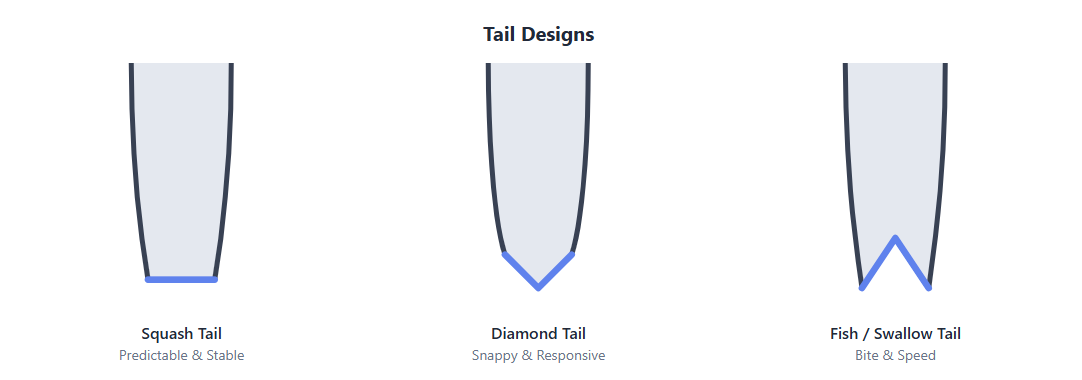

Tail Design (The Steering Wheel)

The tail controls how water exits the back of the board. It is the pivot point of your turns and your primary source of push.

Blunt vs. Pin: Generally, a wider, blunt tail (like a squash or fish) offers more surface area. More surface area means more lift and wave energy utilization (perfect for speed and heavier riders). A narrow tail (like a pin) penetrates the wave, reducing drag for high-speed, agile carving.

Squash Tail: The classic rounded-square. It provides a balanced mix of stability, drive, and maneuverability. It is the ultimate, predictable all-around shape.

Diamond Tail: Sharpens the corners of a squash tail. It maintains stability but releases water faster off the angled points, resulting in a snappier, more responsive turn.

Fish / Swallow Tail: Features a "V" cut out of the back. It offers the speed and lift of a wide tail, but the split design acts like dual pin-tails when you lean on edge, providing incredible bite and control.

Deep Dive: Find out which tail matches your style in Wakesurf Board Shapes Explained: Fish, Diamond, and Squash Tails and Why Do Some Wakesurf Boards Have Blunt Tails?

Bottom Contours (The Engine)

If you flip your board over, the shape of the underside dictates how water is channeled beneath your feet.

Flat Bottom: Quick to plane and predictable. Best for easy gliding and beginner stability, though it lacks the aggressive grip needed for high-speed carves.

Single Concave: A subtle bowl shape that creates a channel for water to flow through. It generates lift and speed, enabling quick rail-to-rail transitions.

Double Concave: Two parallel channels. This produces great lift and speed while maintaining directional stability.

Vee Bottom: A raised ridge running down the center. This helps the board rock from side to side, making it incredibly easy to initiate turns on larger, more powerful waves.

Deep Dive: Master the underside of your board with our guide to Wakesurf Board Bottom Contour Design.

Fin Setups (The Traction Control)

Fins are the hidden drivers of performance. They dictate drive (acceleration), hold (grip), and release (slide).

Single Fin: A classic setup with one center fin. It offers great straight-line stability but is incredibly loose and easy to spin, making it a favorite for skim-style boards.

Twin Fin (2 Fins): Fast, lively, and skatey. Without a center fin creating drag, the board accelerates quickly and breaks loose easily at the lip of the wave.

Thruster (3 Fins): The gold standard for surf-style. The center fin acts as an anchor for stability, while the side fins generate speed during turns. It’s balanced and predictable.

Quad (4 Fins): Incredible acceleration and drive. You get the rail-grip of four fins without the drag of a center fin. Great for powerful carving.

Deep Dive: Discover the physics of fin depth, base length, and sweep in The Fin Factor: How Fins Shape Your Wakesurf Ride and Wakesurf Board Fin Design.

The Bottom Line

A wakesurf board is a sum of its parts. A wide tail might give you speed, but pairing it with an aggressive rocker will slow it back down for control. A hard rail will give you bite, but a twin fin setup will loosen it back up.

By understanding how these elements interact, outline, rocker, rails, tails, bottom contours, and fins, you stop guessing. You can look at any board on the wall and know exactly how it will ride before it ever touches the water.
