At Smith Board Co., we treat every millimeter of a wakesurf board’s design as a calculated hydrodynamic variable. When discussing board maneuverability, riders often default to analyzing the fin setup or the rocker profile. However, the most critical dictator of a board’s turning radius and pivot dynamics is its planform shape, specifically, the top-down outline curvature.

The outline is not an aesthetic choice; it is the geometric boundary where fluid dynamics and mechanical leverage intersect. Understanding how your board’s curve dictates water flow, drag, and pivot response is the key to matching your equipment to your intended riding style.

The Fluid Dynamics of the Outline

When a wakesurf board planes across the water, the water flow must negotiate the board's shape. As you initiate a turn by shifting your weight and engaging the rail, the board's top-down curve becomes the leading edge of the hydrodynamic profile.

The curvature of the rail dictates how water attaches to and eventually releases from the board. A fundamental principle at play here is flow separation. A gradual, continuous curve allows the water flow to remain attached to the rail for a longer period, creating predictable differential pressure. Conversely, abrupt changes in the outline force the water flow to separate, breaking traction and allowing for immediate pivot.

Drag (F_drag) as a Pivot Tool

In our previous deep-dive, How Much Speed Is Too Much? The Control Curve Explained, we established that drag is not inherently your enemy. In fact, controlled drag is the primary mechanism of steering.

When you lay a board on its edge, the outline curvature dictates the surface area exposed to the oncoming water. We can model the resulting force using the standard drag equation:

F_drag = ½ ρ C_d A v²

Where:

• ρ = Density of the water
• C_d = Drag coefficient (determined by rail shape and edge sharpness)
• A = Reference area (the wetted surface area of the engaged rail)
• v = Velocity of the board

A heavily curved outline effectively increases the reference area (A) when put on a rail, inducing a localized spike in F_drag. This drag vector acts as an anchor or pivot point around which the rest of the board rotates, generating angular momentum. For a deeper look at how momentum dictates your ride, review Linear vs. Rotational Speed: The Mechanics of Glide and Spin.

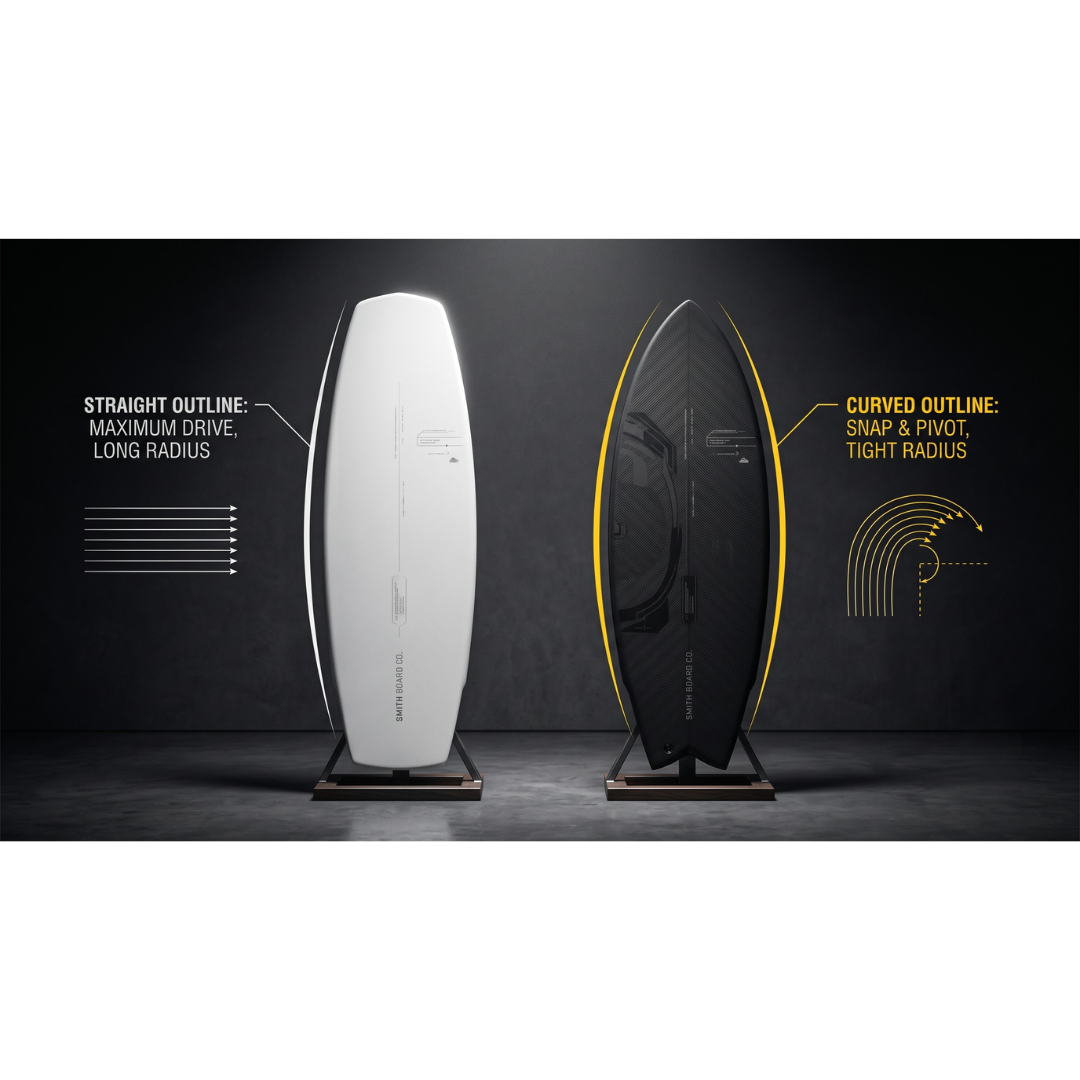

Straight Outlines: The Long Turning Radius

Boards with a straighter outline (parallel rails) are engineered to maximize straight-line speed. By minimizing the curve, the water flow remains largely parallel to the board's trajectory, reducing the overall drag coefficient (C_d) when riding flat.

However, when you attempt to turn a straight-railed board, the lack of curvature means there is no localized drag point to assist in the pivot. The entire length of the rail resists the rotational force. Consequently, boards with straight outlines require a long, drawn-out turning radius. They excel at down-the-line drive and recovering from the back of the wave but feel sluggish or "stiff" when attempting snappy, top-to-bottom maneuvers.

Curvy Outlines: The Agile, Snappy Radius

Boards designed with a continuous, pronounced curve (often culminating in a pulled-in squash or pin tail) are built for agility. The arc of the outline naturally matches the arc of a tight turn.

When a curvy board is put on edge, the curve immediately alters the water flow, creating the necessary drag vector to break linear tracking. Because the rail line is shorter and curved, water releases much earlier near the tail, drastically reducing the board's resistance to rotation. This results in an incredibly snappy, tight turning radius, allowing the rider to pivot aggressively in the pocket of the wave. The trade-off, of course, is a reduction in raw, straight-line speed, as the continuous curve pushes water outward rather than slicing purely forward.

Synthesis on the Water

Your board's outline does not exist in a vacuum. The curvature must be perfectly calibrated with the board's vertical profile. To understand how these elements interact, read How Rails, Rocker, and Outline Work Together (Not Separately).

At Smith Board Co., we calculate the exact geometry of our outlines to ensure that when you shift your weight, the physics of the board respond exactly as intended, whether you are looking for the locked-in speed of a parallel outline or the aggressive pivot of a heavily curved deck.
